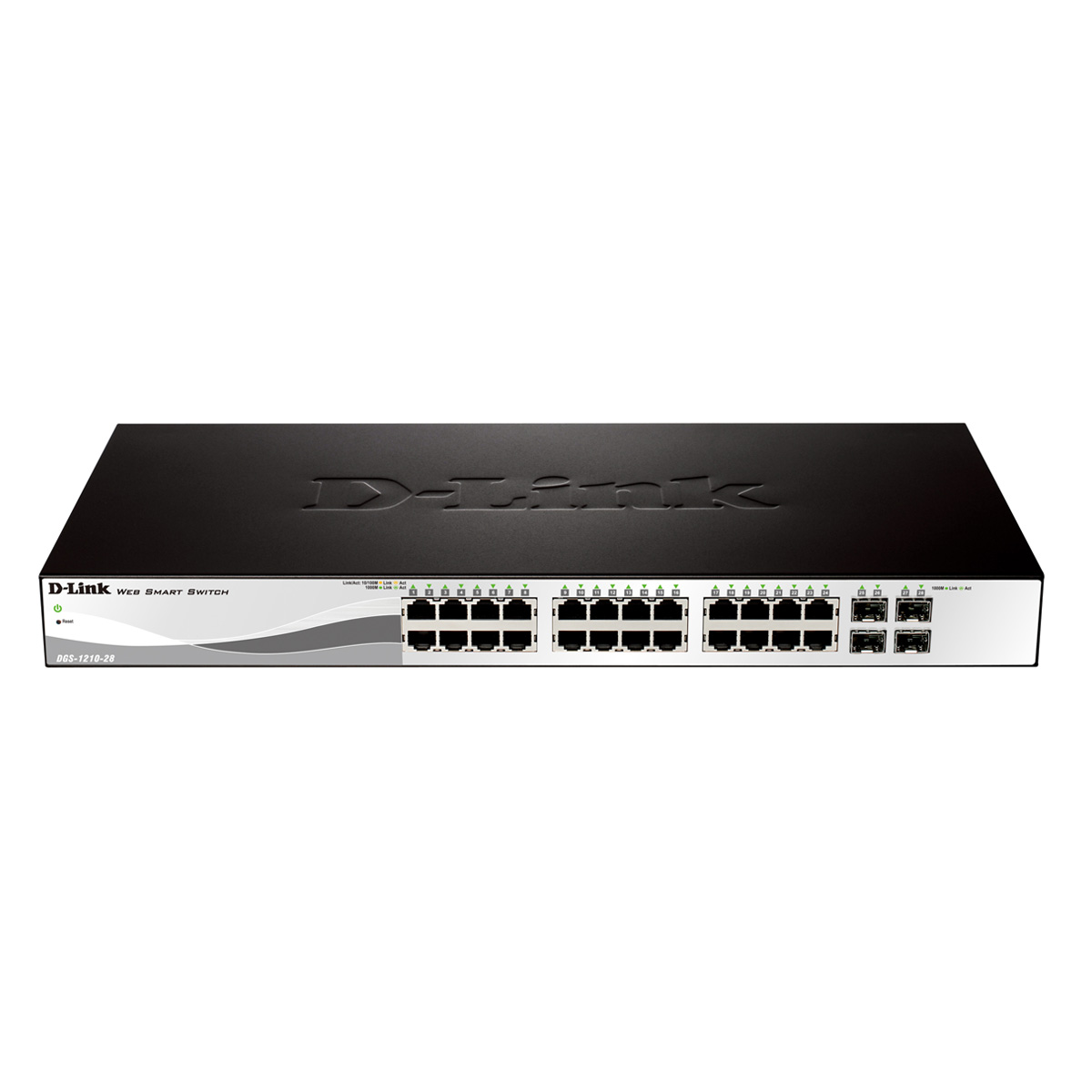

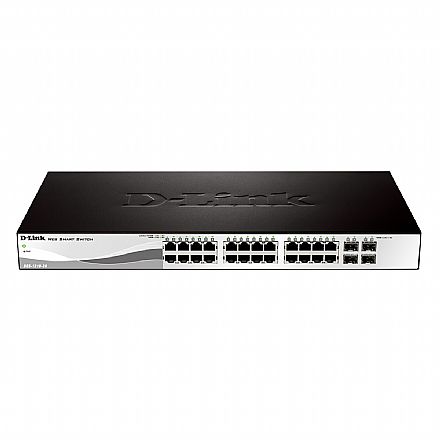

Switch 24p D-Link DGS-1210-28 Web
Smart - 1000Mbps
PN: DGS-1210-28The
DGS-1210 Series is the latest generation of D-Link Web Smart Switches
featuring D-Link Green 3.0 technology.
Características
Green
Technology
• IEEE 802.3az Energy Efficient
Ethernet
• D-Link Green 3.0 power-slaving features
•
LED and Port Shutoff
• Port Standby
•
System Hibernation
• Cable Length Detection
•
Link Status Detection
• Time-based PoE (PoE model
only)
Security Features
•
Access Control List
• D-Link Safeguard Engine
•
Port Security
• ARP Spoofing Prevention
•
Smart IP-MAC-Port Binding
Intuitive Management
•
IPv4/ IPv6 Dual Stack1
• Web GUI (supports 10
languages)
• SmartConsole utility??
•
SNMP and RMON
• Simplified CLI through Telnet
QoS
•
Supports IEEE 802.1p QoS
• Supports DSCP
Advanced
Features
• Auto Surveillance VLAN
•
Auto Voice VLAN
• Port or VLAN-based Loopback
Detection
• Cable Diagnostics
•
LLDP/LLDP-MED
Trap & Logs
•
SNMP Trap
• Trap for SmartConsole Utility??
•
System Log
Port
Standards & Functions
IEEE 802.3 10BASE-T
- Ethernet
IEEE 802.3u 100BASE-TX - Fast Ethernet
IEEE
802.3ab 1000BASE-T - Gigabit Ethernet
IEEE 802.3x Flow Control
- for Full-Duplex Mode
Auto-negotiation
Number
of Ports
24 10/100/1000 Mbps, 4 SFP
Network
Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568
100-ohm STP (100 m max.)
Full/Half
Duplex
Full/half duplex for 10/100 Mbps speeds
Full
duplex for Gigabit speed
Media
Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
56
Gbps
Transmission Method
Store-and-forward
MAC
Address Table
16,000 entries per device
MAC
Address Update
Up to 256 static MAC entries
Enable/disable
auto-learning of MAC addresses
Maximum
64 bytes packet forwarding rate
41.7 Mpps
Packet
Buffer Memory
1 MB per device
Physical
& Environmental
AC
Input
100 to 240 VAC 50/60 Hz internal universal
power supply
Maximum Power
Consumption
16.81 W
Standby
Power Consumption
5.9 W/110 V, 6.42 W/240 V
Heat
Dissipation
57.36 BTU/hr
Operating
Temperature
-5 to 50 ?C (41 to 122 ?F)
Storage
Temperature
-20 to 70?C (-4 to 158 ?F)
Operating
Humidity
0% to 95% non-condensing
Storage
Humidity
0% to 95% non-condensing
Dimensions
440 x 210 x 44 mm
(17.32 x 8.27 x 1.73
inches)
19” standard rack mounting
width,
1U height
Weight
2.9
kg (6.39 lbs)
Diagnostic LEDs
Power
(per device)
Link/Activity/Speed
(per 10/100/1000
Mbps port)
Link/Activity/Speed
(per SFP port)
MTBF
236,739 hours
Certifications
FCC Class A
CE Class A
ICES-003
VCCI
Class A
C-Tick
BSMI
Safety
cUL
CE LVD
Peso c/ Embalagem: 3,066 Kg |
|
| Disponibilidade: Sem estoque no momento | |
| EAN: 7898946992670 | |
| Modelo (GTIN): DGS-1210-28 | |
| Categoria: Rede Switch | |
| Código: 12007 | |
---
