Adaptador
Power Over Gigabit TrendNet - TPE-114GS
-
Gigabit Power over Ethernet (PoE) Splitter
- TPE-114GS
(Version v1.0R)
- Used to install a non-PoE device in remote
locations
- Splits a networked PoE signal into separate power
and Gigabit data sources
- Set the output power to either 5V,
7.5V, 9V, or 12V
- Use this compact device with TRENDnet PoE
switches or injectors
- Save on installation and equipment
costs

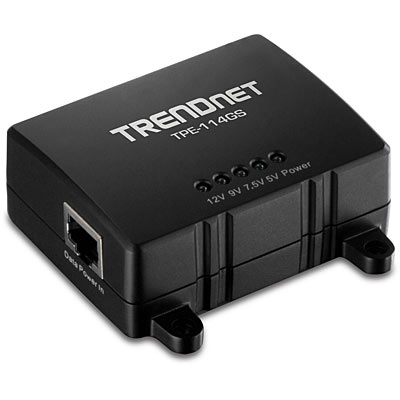

The Gigabit Power over Ethernet Splitter,
model TPE-114GS, is used to install non-PoE devices in remote
locations. It splits a networked PoE signal into separate power and

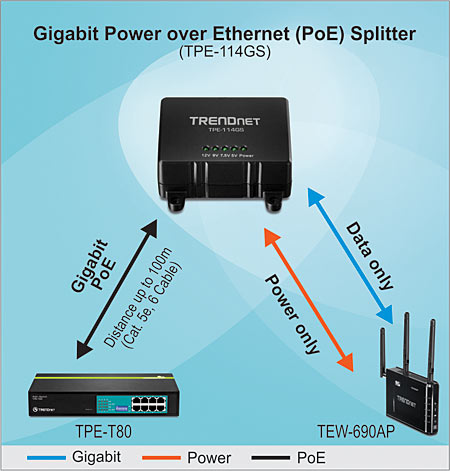

Gigabit data sources. Run an Ethernet cable from a Gigabit PoE switch
(or injector) for distances up to 100 meters and then split the PoE
signal into separate Gigabit data and power sources in order to network
a non-PoE device.
No need to install non-PoE devices near a
power outlet. Save installation and equipment cost when installing
access points, IP cameras, and more in a remote location. A handy
toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to
match non-PoE device power requirements. This compact splitter
safeguards valuable network equipment with short circuit protection.
Quickly create an integrated PoE and non-PoE network at Gigabit speeds.
-
Converts non-PoE devices with Power over Ethernet support
- 1
x 10/100/1000Mbps PoE Auto-MDIX Data In port
- 1 x
10/100/1000Mbps Auto-MDIX Data Out port
- Power out port
-
1 x 33cm (13”) jumper cable with a 2.0mm connection to the
splitter and 2.0mm pin connection to powered device
- 1 x 33cm
(13”) jumper cable with a 2.0mm connection to the splitter
and 2.5mm pin connection to powered device
- For a product
with a 1mm pin power connection, use this product with
TRENDnet’s TV-JC35 (3.5mm to 1mm Jumper Cable)
-
Power LED indicator
- Install non-PoE devices where a power
outlet is not available
- Reduce installation and network
equipment costs
- Safeguards network device with short circuit
protection
- Adjustable output DIP switch 5V, 7.5V, 9V, and
12V adjustable output
- Auto-sensing power drawn from 802.3af
power source equipment(PSE) devices
- Supplies power up to
15.4 Watts
- Light weight and compact size
- Wall
mounting points
::Especificações
técnicas:
Standard
IEEE
802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab
Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE
802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
Network
Media
10Mbps: UTP/STP Cat. 5 Up to 100 meters
100Mbps:
UTP/STP Cat. 5 and 5e Up to 100 meters
Gigabit: UTP/STP Cat.
5e and 6 Up to 100 meters
Ports
1
x 10/100/1000Mbps Data and Power In
1 x 10/100/1000Mbps Data
Out
1 x 5.5mm pin Power Out
Switch
Adjustable
output power DIP switch (5V, 7.5V, 9V, 12V)
Power
Power
In: 48VDC 0.4A
Power Out: 5V(2A), 7.5V(2A), 9V(1.7A), 12V(1.5A)
Power
Consumption
Max. 0.3 watt
Jumper Cable
1
x (2.0 x 2.0mm)
1 x (2.5 x 2.0mm)
Dimensions
70
x 55 x 27mm (2.75 x 2.2 x 1 in.)
Weight
65
g (2.3 oz.)
Temperature
Operation:
0°C~45°C (32°F~ 113°F)
Storage:
-20°C~90°C (-4°F~194 °F)
Humidity
Max.
90% (non-condensing)
Certifications
CE,
FCC
::Imagens:
Peso c/ Embalagem: 0,4 Kg |
|
Disponibilidade: Produto Descontinuado | |
EAN: 0710931505153 | |
Modelo (GTIN): TPE-114GS | |
Categoria: Acessórios para rede | |
Código: 14328 | |
---
