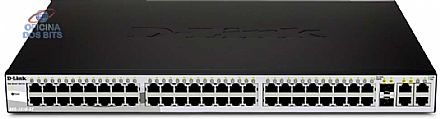

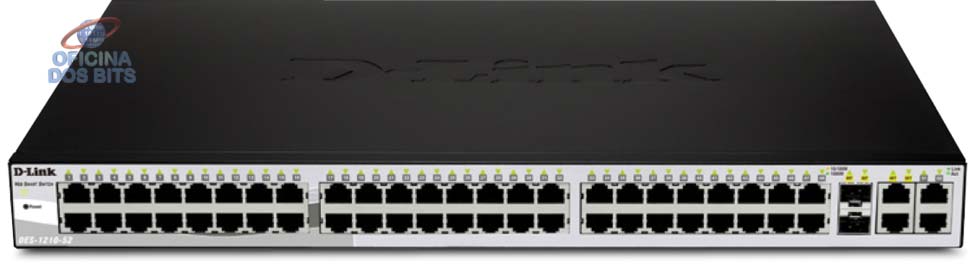

D-Link DES-1210-52
Web Smart 48-Port 10/100 Switch with (2) 10/100/1000BASE-T Ports and 2 Combo SFP Slots
:: Technical Specifications
Number of Ports
? 48 10/100Mbps
? 2 10/100/1000BASE-T
? 2 combo 10/100/1000BASE-T/SFP
Port Standards & Functions
? IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
? IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
? IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
? IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
? Auto-negotiation
?IEEE 802.3x Flow Control
Network Cables
? UTP Cat.5, Cat.5e (100m max)
? EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex
? Full/half duplex for 10/100Mbps speeds
? Full duplex for Gigabit speed
Media Interface Exchange
? Auto MDI/MDI-X adjustment for all twisted pair ports
Switching Capacity
? 17.6Gbps
Transmission Method
? Store-and-forward
MAC Address Table
? 8K entries per device
MAC Address Update
? Up to 256 static MAC entries
? Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate: 13.1Mpps
RAM Buffer: 1MB per device
AC Input: 100 to 240 VAC 50/60 internal universal power supply
Maximum Power Consumption: 28.9W
Dimensions
? 17.4in x 9.8in x 1.7in (441mm x 250mm x 44mm)
? 19-inch standard rack mounting width, 1U height
:: Images
Peso c/ Embalagem: 3,84 Kg |
|
| Disponibilidade: Sem estoque no momento | |
| EAN: 0790069327834 | |
| Modelo (GTIN): DES-1210-52 | |
| Categoria: Rede Switch | |
| Código: 9457 | |
